| Affordable Sandwich Panel Container Refugee Shelter House For Home Reconstruction I. Introduction Sandwich panel container houses have many characteristics: 1. Strong heat preservation: heat insulation and heat preservation to achieve the temperature balance effect, so that it could keep the house warm and cool enough. 2. Energy conservation and environmental protection: limited resources, unlimited value, ready to use, so that you can worry 3. Strong and durable, anti-seismic and wind-resistant, rain and fire-proof, good sealing, stable and firm, with strong anti-deformation ability, normal use can be more than 15 years, so you can feel at ease 4. Production process: the production process is fine and fast, and the combination is flexible, economical, and affordable. 5. Strong mobility: convenient transportation, ready to use, overall migration, always at will 6. Personalized Customization: compromise, combination, freestyle matching, make you comfortable. 7. Comprehensive service: rent, buy, and choose freely. Based on these characteristics, using containers as the refugees' houses can also make their life more comfortable and pleasant. Besides, its price also very affordable. The container was originally designed to facilitate the transportation of goods. In one or more modes of transportation, there is no need to change the loading equipments.
II. Design description

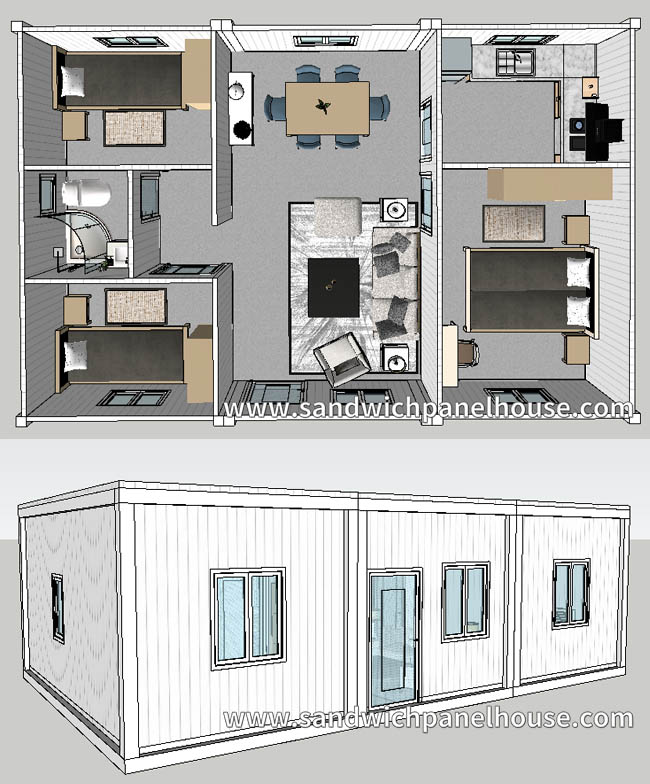

 This modular design unit is designed for family refugees' homes that need 3 bedrooms, one bathroom, one big kitchen, and a big living room with a dining table for people having fun. III. Layout description
| 1 | Building area | 54 sqm | | 2 | Bedroom qty. | 3 | | 3 | Bathroom qty. | 1 | | 4 | Master Bedroom size | 3750 mm * 2850 mm | | 5 | Two single bedrooms size | 2850 mm *2150 mm | | 6 | Bathroom size | 1650 mm * 1650 mm | | 6 | Kitchen room size | 2850 mm *2150 mm | | 7 | Living and dining room | 6000 mm * 3000 mm |

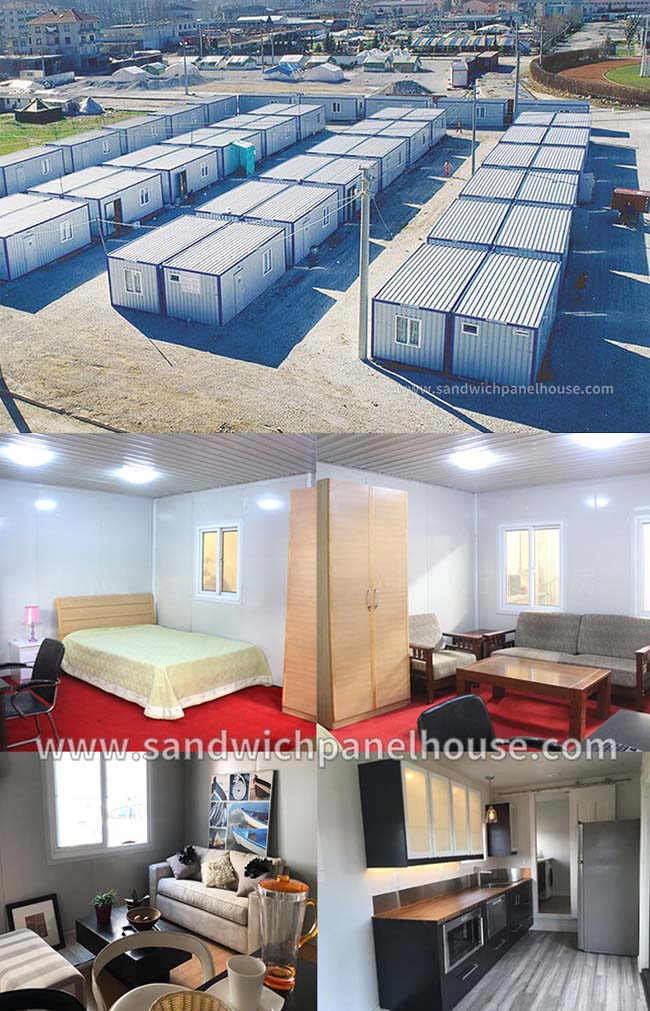

IV. Project show
V. Main materail specification | Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling) | | i | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; | | Strong and corrosion resistance. | | ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube; | | Firm, strong corrosion resistance and has a long service life. | | iii | Roof Insulation | 50 mm glass wool insulation material; | | Fireproof A1 class, non combustion. | | iv | Ceiling | Ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and color coated; | | Strong and corrosion resistance. | | Part 2: Steel Frame (Corner post + column + beam + bolt) | | I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished; | | Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; | | Size: 160* 160* 2480mm; | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; | | Size 1: 3680* 60* 160 mm; | | Size 2: 5680* 60* 160 mm; | | Feather: Safe, strong and corrosion resistance. The color is glossy and can last for a long time. | | iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; | | Size 1: 2680* 60* 160 mm; | | Feather: Safe, strong and corrosion resistance. | | The color is glossy and can last for a long time. | | v | Bolt | High strength galvanized steel bolt; | | To fix the Corner Connection Part and beam, Corner Connection Part and column; | | Firm, strong and corrosion resistance. | | Part 3: Floor System (Floor structure + floor panel + floor leather) | | I | Floor Purlin | Material: 10pcs 40x80mm Galvanized Square tube+4pcs 40x80mm Galvanized Square tube+2pcs 30x50mm Galvanized Square tube; | | Strong, durable, corrosion resistance and has a long service life. | | ii | Floor Panel | 18 mm MGO board; | | Feathers: Good fire and moisture resistance; | | Green environmental protection; | | Part 4 | Wall Panel | 75 mm PU sandwich Panel; | | The outside color is light silver-gray (0.4mm thickness steel ); | | Inside is white color steel (0.4mm thickness steel ). | |
