| Workers Dormitory and Office Sandwich Panel Prefab house for Mining and Oil Construction Site Ⅰ. Product Description Sandwich panel prefab houses are very popular at mining and oil construction sites at low prices and fast installation. Such houses can be found everywhere in the world.
The prefab house is composed of light steel and sandwich panel. The core insulation material is rock wool material, whose fireproof level can reach Class A. It's important for protect people from fire at construction site.
| Prefab House Material List | | Part I. Main Parts | Spec. | | 1 | Wall Panel (50mm Rock Wool sandwich panel) |
Wall Panel: 50mm 50kg/m3 rock wool Sandwich Panel,( 0.40mm steel plate on both sides)；
Color is common color: White gray | | 2 | Roof Panel (50mm Rock Wool Sandwich Panel) | Roof Panel: 50mm 50kg/m3 rock wool sandwich panel (0.40mm blue steel plate on both sides)
Color is common color: Blue | | 3 | Steel Frame (Roof Truss) | Steel column: Double C80×40×1.8 Herringbone beam:C80×40×1.8,C50×40×1.8; Horizontal beam:C80×40×1.8,
C50×40×1.8; Grade beam:C80×40×1.8; Ring beams:C80×40×1.8: Roof purlins:C50×40×1.8; Lateral support:L40×3.0; Control rod:φ8 | | 4 | Ceiling | 7.5mm Plasterboard Ceiling Size: 600*600mm Include: 1. PVC board 2. Painted keel 3. Side keel 4. Coated iron wire Features: 1. Good sound insulation and thermal insulation performance 2. Proper adjustment of indoor humidity | | 5 | Stairs | Include: 1.Small Terrance 2.Armrest 3.Stair Size:1000mm Wide Material: Steel Structure and coat Feature: 1. Durable 2. Not easy to paint off | | 6 | Walkway Board | Material: Steel frame and Coat Size:1m wide Feature: 1.Durable 2.Not easy to paint off | | 7 | Metal Railing | Surface tube 40 × 80 × 1.2, bar 32 × 32 × 1.8 Vertical dry 19 × 19 × 0.8,

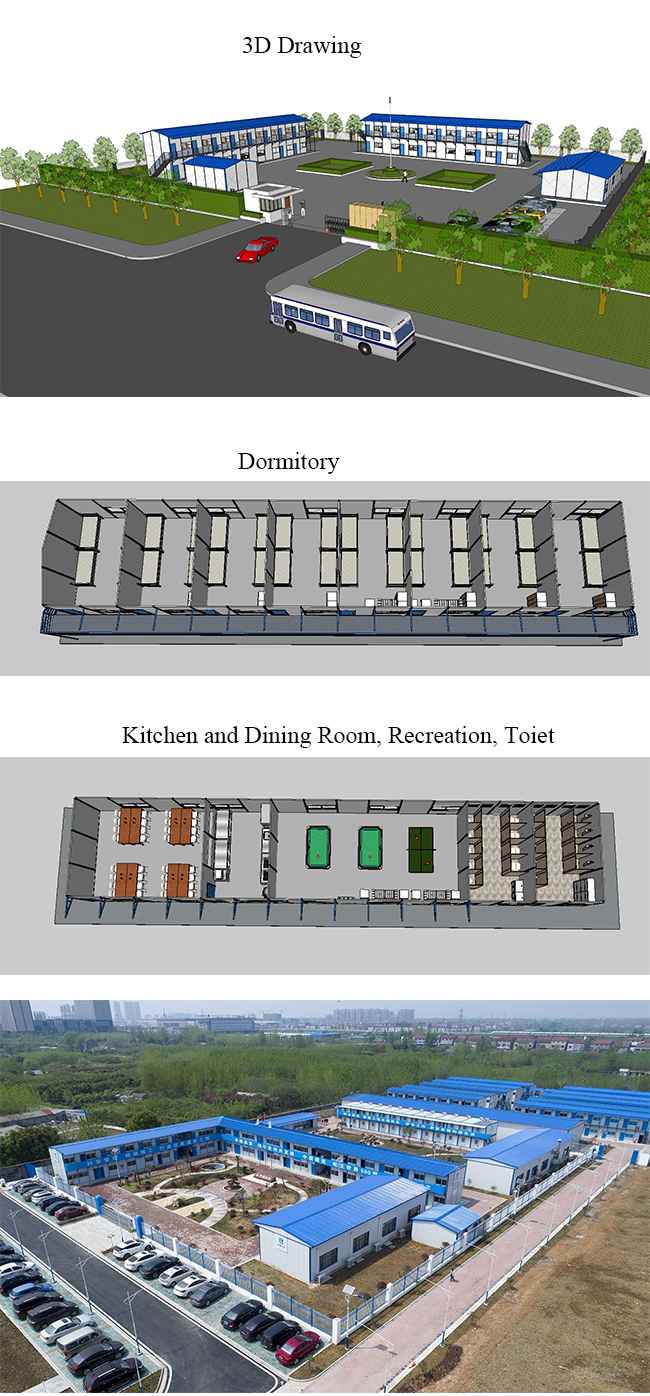

Column 40 × 40 × 1.2 Material:Steel structure | | Part II. Windows, Doors and Accessories | | 8 | Door | Include: Steel door, Lock Size:800*2000mm Material: Iron and paint | | 9 | Window | Size:930mm*1100m Include: Steel plastic sliding window with single glass with burglar mesh. Glass thickness: 1.8mm | | 10 | Floor Leather | Material: PVC Thickness: 1.6mm Features: moisture proof; wear resisting; anti-corrosive and thermal insulation. 1.6 mm PVC Floor Leather Feathers: Excellent appearance, affordable, easy to clean and green environmental protection; | | Part III. Installation Accessories | | 11 | Sealant | Used for the joints of doors and windows for better waterproof. | | 12 | Structure Adhesive | Used for the reinforcement and seal of the steel frames. | | 13 | Screws | Include: rivets, bolts, drill tail screw; | | Ⅱ. Internal Show
Ⅲ. About Us
FAQ: 1. The mainly use of the prefab house:
In the normal it's mainly used as temporary building in the site, such as temporary office, labor accommodation, etc. And in the recent years, the prefab house is largely use in the resettlement housing in some disaster area. In 2008, it played a major role on the resettling the victims after the terrible earthquake on 12th, May, 2008. 2. How to maintain your prefab house?
2.1: First of all, when the prefab house is installed, it's better not to make any other changes, like an expansion, adding partitions or cutting down the walls, or removing screws, and so on.
2.2 : Made the re-paint every 1-2 years after you install it. Such way can increase its service life and keep beautiful.
2.3 : Finally, do not tie the wire to the prefab house, which will lead to the prefab house uneven force and easily cause electric shock accident. 3. How many flooring can the prefab house build?
In the normal we will suggest you to do the prefab house in 1 floor or 2 floors. And the highest one is 3 floors if you need. And will suggest you not build the house more than 3 floors.
By the way, if you want to layout the toilet room in the prefab house, you'd better made it in the ground floor for the water proofing. 4. The materials option for the thermal insulation:
We have 3 materials for your option:
They are: EPS sandwich panel, glass wool sandwich panel, rock wool sandwich panel, PU (polyurethane) sandwich panel. |
