OEM Container House Labor Camp Portable Accommodation For Construction Workers

Product Categories
Henan K-Home Steel Structure Co., Ltd.
Contact Now

OEM Container House Labor Camp Portable Accommodation For Construction Workers

  • 1
  • 2
  • 3

Brand Name : KHOME

Model Number : KHPA

Certification : CE, SGS, ISO, PVOC

Place of Origin : Henan

MOQ : 10 sets

Price : USD2050/set~USD2100/set

Payment Terms : T/T, L/C

Supply Ability : 8000 square meters/month

Delivery Time : 30 days

Packaging Details : Loaded Into 20'GP/40'HQ Shipping Container

Frame : Galvanized Steel Structure

Suitable Temperature : -50c to +50c

Flooring : MGO Board

Connection : All by Bolt

Contact Now



OEM Container House Labor Camp Portable Accommodation For Construction Workers



Ⅰ. Introduction



No matter how remote or challenging of the environment, K-home can design, manufacture and install workfer housing. Accommodations, kitchens, dining halls, recreation,showers, offices, and laundry facilities.

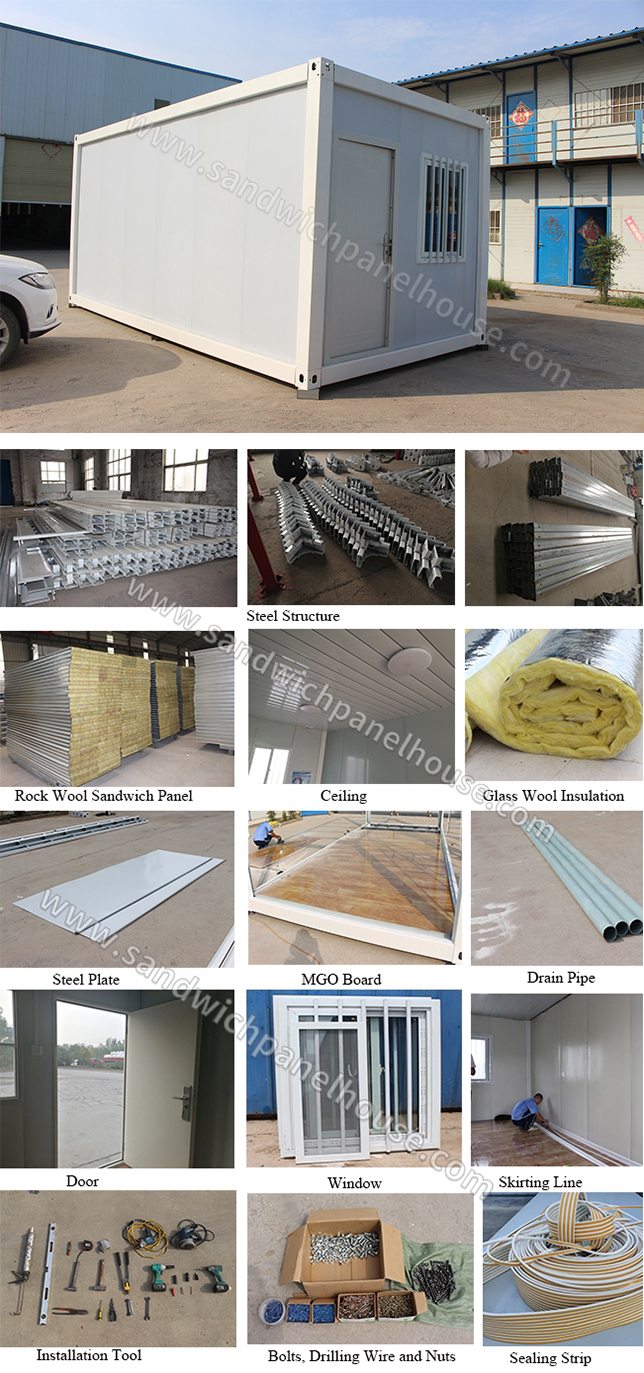

Ⅱ. Detail Specification



 Item  Specification
 Part 1  Roof System
 1.  Steel frame  Q235 galvanized steel structure
 2.  Roof insulation

 50mm glass wool insulation material
 3.  Ceiling  0.4mm steel ceiling
 4.  Steel sheet  0.5mm thickness steel sheet
 Part 2  Floor system
 1.   Steel structure  galvanized steel structure
 2.   Floor board  18mm thickness fireproof MGO board
 Part 3  Corner column
 1.   2.3mm Shaped Galvanized steel
 Part 4  Sandwich wall panel
 1.  Wall panel   50mm rock wool sandwich panel ;

 Outside color is light silver gray (0.38mm thickness steel );
 Inside is white color steel (0.38mm thickness steel ).
 Part 5  Door and Window system
 1.   Door

 Steel door;

 Size: 950*2000mm.
 2.  Window  Plastic steel sliding window (including screens);

 With 0.35mm Double glass and strength pvc window frame;

 Width 930mm, height 1200mm;

 Window rail is smooth.
 Part 6  Electric system
 1.  LED light  Type: LED energy saving lamp;
 Power: 24W
 2.  Socket & Switch  Include: Two sockets and one switch;
Note: The socket will be equipped according to the local standard.
 3.  Wire  Includes: electric wire and conduit;
Use: The electric wire will be in the conduit and go through the wall panel for concealed installation.
 4.  Terminal socket  Features: short-circuit protection; overload protection; under voltage protection.
 Part 7  Accessories
 1.  Sealing Strip  Used on the joint between wall panel and steel frame for better waterproof performance.
 2.  Lock  Used when two containers connected with each other. As you tighten the lock, the containers will be fixed together strongly.
 3.  Waterproof butyl tape  Self-adhesive
 4.  Rubber strip  When there are two containers connected with each other, it is used in the joint between two containers for better fixation.
 5.  Internal skirting line  Material: PVC;

 Includes: Vertical internal skirting line and horizontal internal skirting line.
 6.  Steel Plate for Internal Connection  Material: Stainless Steel;

 Used on the joints between two bottom frames when different containers connected with each other.
 7.  Structure Adhesive  Used for the reinforcement and seal of the steel frames.
 8.  Sealant  Used for the joints of doors and windows for better waterproof.
 9.  Screws  Include: bolts, drill tail screw, flat tap screw.



OEM Container House Labor Camp Portable Accommodation For Construction Workers

Ⅲ. Advantages



● ISO9001:2015 and CE Certificate;
● Many years experience of modular container;
● Professional design team and installation team;
● Efficient Transportation;
● Fast construction;
● Flexible Combination and widely usage;
● Cost saving and Sustainability;



OEM Container House Labor Camp Portable Accommodation For Construction Workers

Ⅳ. Project Show



OEM Container House Labor Camp Portable Accommodation For Construction Workers




Product Tags:

OEM Portable Accommodation



MGO Board Flooring Portable Accommodation



Bolt Connection Portable Accommodation


Buy cheap OEM Container House Labor Camp Portable Accommodation For Construction Workers product

OEM Container House Labor Camp Portable Accommodation For Construction Workers Images
